| Brand Name : | Cheng Home |
| Model Number : | A120XX-XX |
| Certification : | UL TUV |
| Price : | USD1.00-8.00 per piece |
| Payment Terms : | T/T |
| Supply Ability : | 200-400K pieces per month |
| Delivery Time : | 4-6 weeks |
This is a 12V DC brushless fan motor designed for cooling applications. The fan is made with high-quality materials that ensure durability and reliability. The motor is designed to operate with low noise and high efficiency, making it an ideal choice for use in a variety of cooling applications.
The fan features a brushless design, which provides several advantages over traditional brushed motors. Brushless motors are more efficient, have longer lifetimes, and produce less noise than brushed motors. This makes the fan ideal for use in applications where noise and efficiency are important factors.
The fan is manufactured with a high-quality ball bearing system that provides smooth and reliable operation. The ball bearing system also helps to reduce noise and vibration, ensuring a long lifespan for the fan.
This 12V DC cooling fan is easy to install and use. It comes with a standard 3-pin connector that can be easily connected to a power source. The fan is also designed with a low power consumption, making it an energy-efficient option for cooling applications.
Overall, this 12V DC brushless fan motor is a reliable and efficient choice for a variety of cooling applications. It is ideal for use in electronics, computer systems, and other cooling applications where low noise and high efficiency are important considerations.

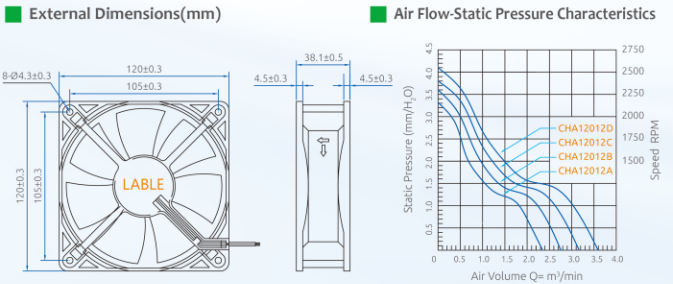

120X120X38 mm
2.34~3.59 m3/min
BLDC fan with Sensor Motor: These fans are equipped with a sensor – called the half effect sensor – that aids in detecting the position of the magnet.
BLDC fan with Sensor-less Motor: In these fans, back EMF is used to detect the position of the magnet.
| Model | Rated Vohage (DCV) | Operating Voltage (DCV) | Rated input | Rated Current | Operating Temperature | Storage Temperature (°Q | Speed (RPM) | Max, Air Flow (CFM) | Max. Aire Pressure (mmH2O) | Noise I (DB) | Bearing Type | Weight (g) |
| (W) | (A) | |||||||||||
| CHA12012A | 12 | 7-138 | 6 | 0.5 | -10*70 | -40-70 | 1700 | 8287 | 3.32 | 34 | B | 193 |
| CHA12O12B | 12 | 7-133 | 7.8 | 0.65 | -10-70 | -40*70 | 2000 | 97.49 | 3.6 | 38 | B | 193 |
| CHA12012C | 12 | 7-13.8 | 9.6 | 0.8 | -10-70 | -40-70 | 2300 | 112.11 | 3.87 | 43 | B | 193 |
| CHA12024C | 24 | 12-26.4 | 9.6 | 04 | -10-70 | -40-70 | 2300 | 112.11 | 3.87 | 43 | B | 193 |
| CHA12012D | 12 | 7-13.8 | 11.4 | 0.95 | -10-70 | -40-70 | 2600 | 126.74 | 4.1 | 48 | B | 193 |
Option: 12V or 24V
S: Sleeve bearing B: Ball bearing SB: One ball one sleeve
Frame: Plastic PBT 94V0
Impeller: Plastic PBT 94V0
Lead Wire: AWG26 "+" Red Black Standard UL 1007
Option: Signal output
Bearing: Ball bearing or Sleeve bearing
Everrich Electronic(Dong Guan)Co.,Ltd, a subsidiary of Cheng Home Electronics Co.,Ltd, is the Taiwan based enterprise which is specialized in designing and manufacturing of DC brushless fans and motors. The company was established in Oct.1985. It has been 30 years experience of professional design and manufacture of DC fans, motors. We use advanced auto production equipment and testing machines,and we have senior professional & manager and technique power is strong.
We have continuously made all series of DC brushless fans from size 25mm to 172mm,and thickness from 6mm to 50mm. We would like to establish a partnership with each customer by developing any kind of fan and motor for customers special needs in PCs,desktop computers,telecom,car,projector,copy machine,fragrance lamp and industrial,medical,home application and other equipments.
We produce high efficiency,quality and stability. Our fans low noise,high airflow,long life.We have passed many domestic / international professional certificate such as CCC,UL,TUV. The product are sold to USA, Japan, Korea, South-east Asia and Hong Kong etc. around the world. Besides, we have a cooperation with world famous companies. In order to always keep in the leading position in the world, we continually import equipment,develop new product and create new market.
|
