| Brand Name : | Cheng Home |
| Model Number : | F9212-XX |
| Certification : | UL TUV |
| Price : | USD1.00-8.00 per piece |
| Payment Terms : | T/T |
| Supply Ability : | 200-400K pieces per month |
| Delivery Time : | 4-6 weeks |
This Brushless DC Cooling Fans are operating at 12V with a dimension of 92x92x25 mm. They are typically found in Computer cases, servers, and other enclosed equipment but they can also be used in a variety of other projects requiring moderate airflow. The fan spins at ~2600 RPM and can move approximately 30CFM. It is fairly quiet – just 27dBA.
F9212-XX

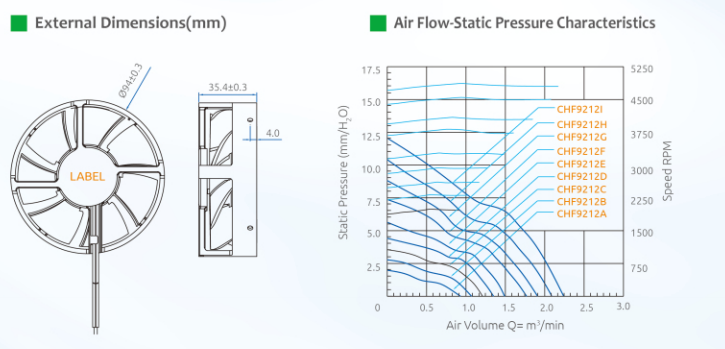

92x92x25 mm
0.930-2.236 m3/min
Material
Frame: Plastic PBT 94V0
Impellen Plastic PBT 94V0
Lead Wire: AWG26 "+" Red "-" Black Standard UL 1007
Option: Signal output
Bearing: Ball bearing or Sleeve bearing
| Model | Rated Voltage (DCV) | Operating Voltage <DCV) | Rated input (W) | Rated Ct arrant | Operating Temperature CQ | Storage Temperature | Speed (RPM) | Max, Air Flow (CFM) | Max, Aire Pressure (mmH2O) | Noise (DB) | Bearing Type | Weight 1 (9) |
| ICIIl (A) | ||||||||||||
| CHF9212A | 12 | 7-13.2 | 1.32 | 0.11 | -10-70 | -40-70 | 2000 | 32.9 | 2.1 | 27 | S/SB | 93 |
| CHF9212B | 12 | 7-13.2 | 1.92 | 0.16 | •10-70 | -40-70 | 2300 | 37.84 | 2.78 | 31 | SB | 93 |
| CHF9212C | 12 | 7-13.2 | 2.52 | 0.21 | -10-70 | -40-70 | 2600 | 42.77 | 3.55 | 343 | 93 | |
| CHF9212D | 12 | 7-13.2 | 336 | 0.28 | -10-70 | -40-70 | 3200 | 52.63 | 538 | 41.2 | SB/B | 93 |
| CHF9212E | 12 | 7-13.2 | 5.4 | 0.45 | •10-70 | -40-70 | 3600 | 59.21 | 6.8 | 43.8 | 93 | |
| CHF9212F | 12 | 7*13.2 | 6.84 | 057 | -10-70 | -40*70 | 4200 | 69.07 | 9.26 | 48 | S | 93 |
| CHF9212G | 12 | 7-13.2 | 8.4 | 0.7 | -10-70 | -40-70 | 4800 | 78.94 | 12.1 | 55.3 | SB/B | 93 |
S: Sleeve bearing B: Ball bearing SB: One ball one sleeve
