EVERRICH ELECTRONICS CO., LTD.
6 Years
| Ask Lasest Price | |

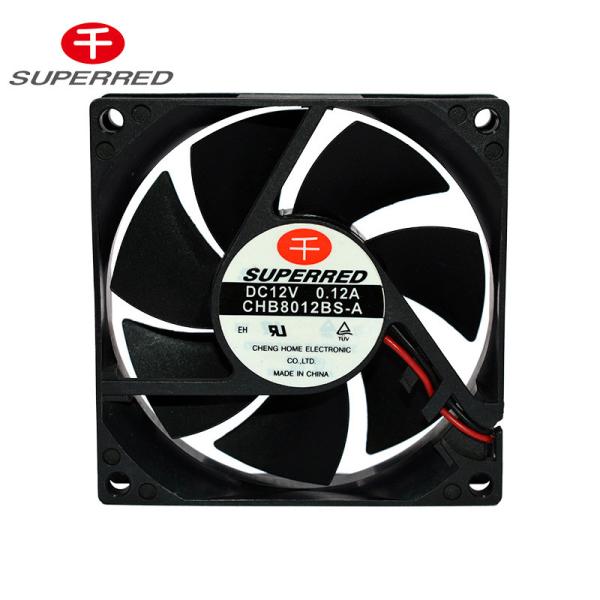

| Brand Name : | Cheng Home |
| Model Number : | B8012-XX |
| Certification : | UL TUV |
| Price : | USD1.00-8.00 per piece |
| Payment Terms : | T/T |
| Supply Ability : | 200-400K pieces per month |
| Delivery Time : | 4-6 weeks |
Product Information
DC cooling fans use direct current. That is, the electricity moves
in only one direction. DC fans do not consume as much energy as AC
fans, due to their lower voltage. Another benefit of DC fans is
that they do not generate much electromagnetic interference.
Electromagnetic interference is a disruption in electrical
circuitry that can affect performance by causing a loss of data. DC
cooling fans typically last longer and have a less complicated
design than AC fans. The flow on a DC fan usually changes based on
the input voltage.
When choosing a cooling fan, it is recommended to keep in mind the type of voltage that is needed. Higher voltages are more powerful, but it may not be necessary for certain applications. The type of application will also be a factor on other characteristics. For example, a cooling fan used in a medical office would need to be quieter than one used in a more industrial environment. Before this DC fan is mounted, it is recommended that the intended device be turned off and unplugged to avoid potential injury or damage to the machine.
Features:
80x80x20 mm
0.64~1.07 m3/min
Material
Frame Plastic PBT 94V0
lmpeller Platic PBT 94V0
Lead Wire: AWG26 "+" Red "-" Black Standard UL 1007
Option Signal output
Bearing:Ball bearing or Sleeve bearing
Specification:
| Model | Rated Voyage (DCV) | Operating Voltage (DCV) | Rated input (W) | Rated Current (A) | Operating Temperature (°. | Storage Temperature | (°C) | Speed (RPM) | Max. Air Flow (CFM) | Max. Aire Pressure (mmHjO) | Noise (DB) | Bearing Type | Weight (g) |
| CHB8012A | 12 | 6-13.8 | 1.08 | 0.09 | -10-70 | -40-70 | 2100 | 22.4 | 1.52 | 25 | B/S | 62 |
| CHB8012B | 12 | 6-13.8 | 1.44 | 0.12 | -10-70 | -40-70 | 2500 | 26.9 | 2.1 | 29 | S/SB/B | 62 |
| CHB8012C | 12 | 6-13.8 | 2.04 | 0.17 | -10-70 | -40-70 | 3000 | 32.5 | 3.02 | 34 | B/S | 62 |
| CHB8012D | 12 | 6-13.8 | 3.6 | 0.3 | -10-70 | -40-70 | 3600 | 37.7 | 4.02 | 39 | S/B | 62 |
About us
Everrich Electronic(Dong Guan)Co.,Ltd, a subsidiary of Cheng Home Electronics Co.,Ltd, is the Taiwan based enterprise which is specialized in designing and manufacturing of DC brushless fans and motors. The company was established in Oct.1985. It has been 30 years experience of professional design and manufacture of DC fans, motors. We use advanced auto production equipment and testing machines,and we have senior professional & manager and technique power is strong.
We have continuously made all series of DC brushless fans from size 25mm to 172mm,and thickness from 6mm to 50mm. We would like to establish a partnership with each customer by developing any kind of fan and motor for customers special needs in PCs,desktop computers,telecom,car,projector,copy machine,fragrance lamp and industrial,medical,home application and other equipments.
We produce high efficiency,quality and stability. Our fans low noise,high airflow,long life.We have passed many domestic / international professional certificate such as CCC,UL,TUV. The product are sold to USA, Japan, Korea, South-east Asia and Hong Kong etc. around the world. Besides, we have a cooperation with world famous companies. In order to always keep in the leading position in the world, we continually import equipment,develop new product and create new market.
|
|
