EVERRICH ELECTRONICS CO., LTD.
6 Years
| Ask Lasest Price | |
| Brand Name : | Cheng Home |
| Model Number : | B8012-XX |
| Certification : | UL TUV |
| Price : | USD1.00-8.00 per piece |
| Payment Terms : | T/T |
| Supply Ability : | 200-400K pieces per month |
| Delivery Time : | 4-6 weeks |

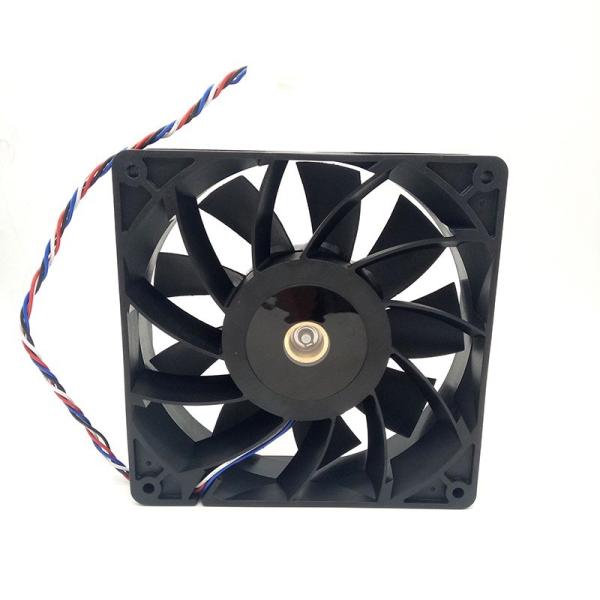

OEM Speed Detection / Waterproof( IP55-IP67 ) DC Cooling Fan
| 1.Special voltage:Any voltage in the range of 3-48v |
| 2.Material: Eco-friendly material,Flame-proof material |
| Moisture-proof,waterproof(IP55,IP56,IP68) or Complete waterproof(Ati-acid,Ati-alkali and waterproof) |
| 4.OEM,ODM service supported. Customize fan stickers. |
| 5. Customize Cable length,connector. |
| 6.Function customize. |
Size | size from 15*15*04mm to 200*200*60mm |
Voltage | 5V, 12V, 24V, 36V, 48V according to customer's requirement |
Protection | Up to IP 68 |
Operating Voltage | 10.8~13.2V |
Warranty | 1 Year |
Life | 50,000 hrs |
Lead time | 7~10 Days |
Termination | UL Leadwires or Customerized Terminal |
Insulation Resistance | Min 10 megohm at 250 VDC between terminal(+)and housing |
Dielectric Strength | Applied AC 500 V for one minute or AC 600 V for 2 Seconds between
housing and terminal (+) |
Bearing | Sleeve or Ball ( sleeve working time for 30,000 hours, ball working
time for 50,000 hours) |
Temperature | -10℃~+70℃(Operation), -40℃~+80℃(Storage) |
Features | High airflow, Low noise, Long life, Low Power-consumption |
Functions | PWM (Pulse Width Modulation) FG (Frequency Generator / Tachometer) RD (Rotation Detector) AR (Auto Restart) TC (Thermal Control) |
Features:
80x80x20 mm
0.64~1.07 m3/min
Material
Frame Plastic PBT 94V0
lmpeller Platic PBT 94V0
Lead Wire: AWG26 "+" Red "-" Black Standard UL 1007
Option Signal output
Bearing:Ball bearing or Sleeve bearing
Specification:
| Model | Rated Voyage (DCV) | Operating Voltage (DCV) | Rated input (W) | Rated Current (A) | Operating Temperature (°. | Storage Temperature | (°C) | Speed (RPM) | Max. Air Flow (CFM) | Max. Aire Pressure (mmHjO) | Noise (DB) | Bearing Type | Weight (g) |
| CHB8012A | 12 | 6-13.8 | 1.08 | 0.09 | -10-70 | -40-70 | 2100 | 22.4 | 1.52 | 25 | B/S | 62 |
| CHB8012B | 12 | 6-13.8 | 1.44 | 0.12 | -10-70 | -40-70 | 2500 | 26.9 | 2.1 | 29 | S/SB/B | 62 |
| CHB8012C | 12 | 6-13.8 | 2.04 | 0.17 | -10-70 | -40-70 | 3000 | 32.5 | 3.02 | 34 | B/S | 62 |
| CHB8012D | 12 | 6-13.8 | 3.6 | 0.3 | -10-70 | -40-70 | 3600 | 37.7 | 4.02 | 39 | S/B | 62 |
|
|
