EVERRICH ELECTRONICS CO., LTD.
6 Years
| Ask Lasest Price | |
| Brand Name : | Cheng Home |
| Model Number : | B8012-XX |
| Certification : | UL TUV |
| Price : | USD1.00-8.00 per piece |
| Payment Terms : | T/T |
| Supply Ability : | 200-400K pieces per month |
| Delivery Time : | 4-6 weeks |

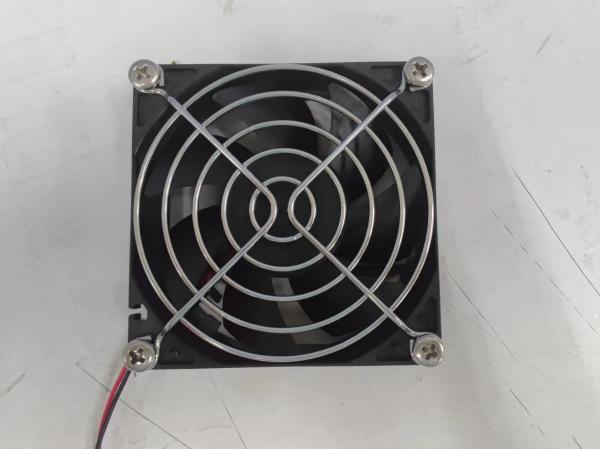

Strong Air 12038 DC 12v 2.7A 6000rpm High Cfm 120mm Brushless
Cooling Fan
| Material: | PBT (UL94V-O) plastics |
| Voltage: | 12V 24v 48v |
| Speed: | 2500-4000RPM |
| Air Volume: | 63.73CFM |
| Power: | 4.8-7.2W |
| Bearings: | Sleeve/ball Bearing |
| Power Interface: | 2Pin,3Pin,4Pin Optional |
| Performance:Support for: | PWM,FG,LG,Moisture-proof,Waterproof ,Fireproof Optional |
| Weight: | 78g |
| Noise: | 25-47dBA |
| Color: | White, Black |
| Motor: | Brushless DC, auto restart Impedance & polarity protected |
| Operation temperature: | -20° C~80° C |
| Insulation Resistance; | 10 At 500VDC between lead and frame |
| Dielectric Strength: | 1 min at 500VAC/50-60Hz, current min 5mA Operation Humidity: 20%~85% |
| Working voltage: | Rated voltage± 15% |
| Life Expectancy: | 50, 000 hours at 20℃-Ball, 30, 000 hours at 20℃-Sleeve |
| Application: | computer case,CPU cooler,Air purifier,Humidifier,Atomizer,Power industry,Automotive industry,Projector,VR equipment ,3D printers,etc. |
Product Information
DC cooling fans use direct current. That is, the electricity moves
in only one direction. DC fans do not consume as much energy as AC
fans, due to their lower voltage. Another benefit of DC fans is
that they do not generate much electromagnetic interference.
Electromagnetic interference is a disruption in electrical
circuitry that can affect performance by causing a loss of data. DC
cooling fans typically last longer and have a less complicated
design than AC fans. The flow on a DC fan usually changes based on
the input voltage.
When choosing a cooling fan, it is recommended to keep in mind the type of voltage that is needed. Higher voltages are more powerful, but it may not be necessary for certain applications. The type of application will also be a factor on other characteristics. For example, a cooling fan used in a medical office would need to be quieter than one used in a more industrial environment. Before this DC fan is mounted, it is recommended that the intended device be turned off and unplugged to avoid potential injury or damage to the machine.
Features:
80x80x20 mm
0.64~1.07 m3/min
Material
Frame Plastic PBT 94V0
lmpeller Platic PBT 94V0
Lead Wire: AWG26 "+" Red "-" Black Standard UL 1007
Option Signal output
Bearing:Ball bearing or Sleeve bearing
Specification:
| Model | Rated Voyage (DCV) | Operating Voltage (DCV) | Rated input (W) | Rated Current (A) | Operating Temperature (°. | Storage Temperature | (°C) | Speed (RPM) | Max. Air Flow (CFM) | Max. Aire Pressure (mmHjO) | Noise (DB) | Bearing Type | Weight (g) |
| CHB8012A | 12 | 6-13.8 | 1.08 | 0.09 | -10-70 | -40-70 | 2100 | 22.4 | 1.52 | 25 | B/S | 62 |
| CHB8012B | 12 | 6-13.8 | 1.44 | 0.12 | -10-70 | -40-70 | 2500 | 26.9 | 2.1 | 29 | S/SB/B | 62 |
| CHB8012C | 12 | 6-13.8 | 2.04 | 0.17 | -10-70 | -40-70 | 3000 | 32.5 | 3.02 | 34 | B/S | 62 |
| CHB8012D | 12 | 6-13.8 | 3.6 | 0.3 | -10-70 | -40-70 | 3600 | 37.7 | 4.02 | 39 | S/B | 62 |
Our products are being exported to America, Europe, South America, Middle East and South-East Asia. We claim to cooperate with our partners and customers on the basis of mutual benefit, mutual support and co-development. Providing our customers with high quality products, a large range of items, competitive prices, short lead-time, fast shipping and a high quality after-sale service is a must. Customer satisfaction is our main commitment.
|
|
